تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: E-link
رقم الموديل: LNK-DVI-106 الألياف البصرية الموسع
الوثيقة: E-link LNK-DVI-106 DVI Fibe....0.pdf
شروط الدفع والشحن
الحد الأدنى لكمية: 1 قطعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: علبة يعبّئ
وقت التسليم: 3-12 يوم عمل
شروط الدفع: ل / c، / تي تي، ويسترن يونيون، مونيغرام، بايبال
القدرة على العرض: جهاز كمبيوتر شخصى 1000 / شهر
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
94.5*73*26mm |
Operating Temperature: |
-5℃ ~ +70℃ |
Humidity: |
5% ~ 90% |
Power dissipation: |
MAX 5W |
Power supply: |
The power adapter: DC 5V/2A |
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
94.5*73*26mm |
Operating Temperature: |
-5℃ ~ +70℃ |
Humidity: |
5% ~ 90% |
Power dissipation: |
MAX 5W |
Power supply: |
The power adapter: DC 5V/2A |
Advantages
► Transmits DVI video signals up to 2km-10km over one fiber optic cable;
► Support video resolution up to 1920*1200@60Hz;
► Support copy EDID, can match many kind display device;
► Compliance with DVI 1.0 and HDCP 1.2 standard;
► High compatibility, can auto-match source and display device;
► Built-in automatic adjustment system, make the image smooth, clear and stable;
► Built-in ESD protection system;
► Simple to install, plug and play;
Overview

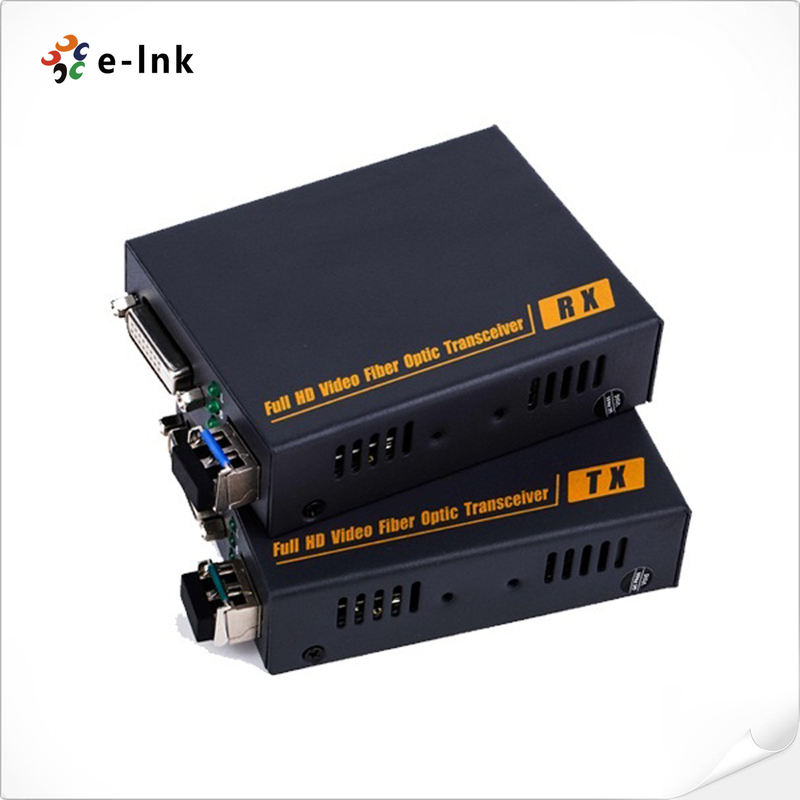

The LNK-DVI-106 Fiber Optic Extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Ordering Information
|
Model |
Description |
|
LNK-DVI-106 |
DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Multi-mode Fiber, 350 meters, LC(SFP), including 1 transmitter & 1 receiver, used by pairs |
|
LNK-DVI-S106-10 |
DVI-D to Fiber Converter: DVI-D Optical fiber transmission without compression /DVI - D, Single Mode, Single Fiber, 10KM, LC(SFP), including 1 Transmitter & 1 Receiver, used by pairs |
Application
