تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: E-link
رقم الموديل: LNK-D4K-مم
الوثيقة: E-link LNK-D4K-MM Mini 4Kx2....0.pdf
شروط الدفع والشحن
الحد الأدنى لكمية: 1 قطعة
الأسعار: قابل للتفاوض
تفاصيل التغليف: علبة يعبّئ
وقت التسليم: 3-12 يوم عمل
شروط الدفع: ل / c، / تي تي، ويسترن يونيون، مونيغرام، بايبال
القدرة على العرض: جهاز كمبيوتر شخصى 1000 / شهر
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
50/125μ OM3 Multi-Mode Fiber:≤300m |
EDID Support: |
Support EDID pass-through |
The warranty: |
1-year warranty |
Dimensions (WxDxH): |
69mm x 42 mm x 18.2 mm |
Operating Temperature: |
32° to +112° F. (0° to +50° C) |
Storage Temperature: |
-40° to +185° F. (-40° to +85° C) |
Fiber Cable: |
50/125μ OM3 Multi-Mode Fiber:≤300m |
EDID Support: |
Support EDID pass-through |
Advantages
► Support DVI 1.0 and HDMI v1.4
► Support EDID pass-through.
► Support resolutions up to 3840x2160/30P
► 7.1 channel LPCM, 192 kHz, 24-bit
► Support 3840*2160/60P(YUV 420)
► Plug and Play ,Built-in EQ(Receiver)
► Support 4K/30P@ Single-Link
► Two fiber,2-ways
► Bandwidth up to 10.2 Gbps
► Up to 300m distance by Multimode Fiber
► Support the HDCP 1.4
► Low RFI / EMI
► Support 3D TV pass-through
► Surface-mountable

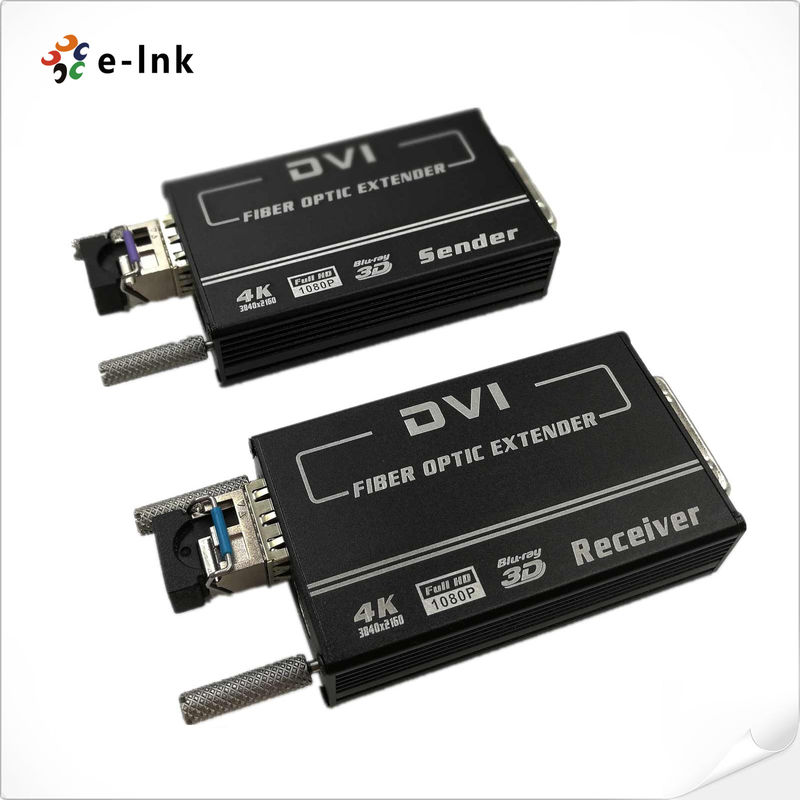

Overview
E-link Mini 4Kx2K DVI is High-Definition Multimedia Interface recently has become increasingly popular in the application of video and audio transmission system, DVI Fiber Optic Extender uses one fiber without any copper wire inside, where radio frequency interference phenomenon is literally ruled out, which shows the advantage of high performance and good signal quality as well as low cost.
The LNK-D4K-MM series is a high performance 4K Optical Extender that transmits high resolution DVI signals over extreme distances using one fiber. This extender supports HDMI v1.4 signals with resolutions up to 4K (3840*2160/30p) over cable distances up to 300m.
Order Information
Model | Description |
LNK-D4K-MM-S | Mini 4KX2K DVI Fiber Sender Auto EDID,DC5V1A |
LNK-D4K-MM-R | Mini 4KX2K DVI Fiber Receiver Auto EDID,DC5V1A |
