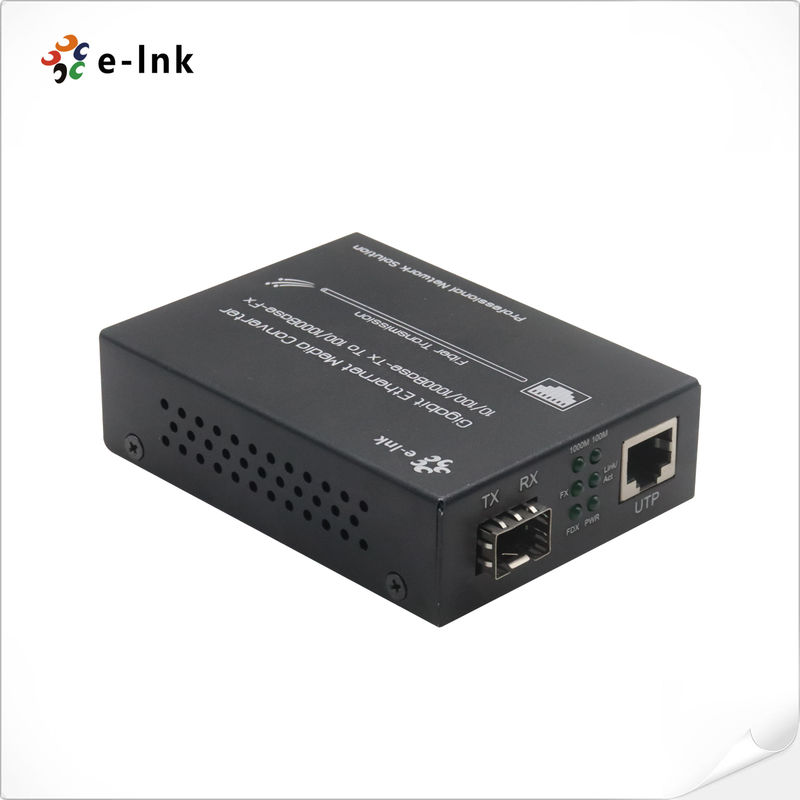

Media Converter 10/100/1000M Gigabit Ethernet(with External Power Supply) SFP Slot

Name: Media Converter 10/100/1000M Gigabit Ethernet(with External Power Supply) SFP Slot
Brand: E-link China Technology Co.,LTD
SKU: LNK-3011WSFP
Price: 18.00 USD
Availability: InStock

تفاصيل المنتج

مكان المنشأ: الصين

اسم العلامة التجارية: E-link

إصدار الشهادات: Iso9001, CE, ROHS, FCC

رقم الموديل: LNK-3011WSFP

الوثيقة: E-link LNK-3011WSFP SFP Med....0.pdf

شروط الدفع والشحن

الحد الأدنى لكمية: 1pcs

الأسعار: US$16 -US$20

تفاصيل التغليف: ألياف وسائط وسائط المحول القياسي تغليف الكرتون

وقت التسليم: 1-3 أيام العمل

شروط الدفع: T/T ، Western Union ، Moneygram ، PayPal

القدرة على العرض: 10000/شهر

احصل على أفضل سعر

اتصل بنا الآن

المواصفات

الوصف

المواصفات

إبراز:
                                                                                                                                                                                                                                                                                                                                                                                                      External Power Supply Media Converter,10/100/1000M SFP Slot Media Converter,SFP Slot Gigabit Ethernet Media Converter, 10/100/1000M SFP Slot Media Converter, SFP Slot Gigabit Ethernet Media Converter


وضع الوصول:	10/100/1000 ميغابت في الثانية من جيجابت إيثرنت	مزود الطاقة:	الطاقة الخارجية: AC90 ~ 240V إدخال ، 5V2A الإخراج
بير:	<10-9	MTBF:	100،000 ساعة
الحفاظ على درجة الحرارة:	-40 ~ 70 درجة مئوية	الأبعاد (W X D X H):	71 × 94 × 26 مم

وضع الوصول:	10/100/1000 ميغابت في الثانية من جيجابت إيثرنت
مزود الطاقة:	الطاقة الخارجية: AC90 ~ 240V إدخال ، 5V2A الإخراج
بير:	<10-9
MTBF:	100،000 ساعة
الحفاظ على درجة الحرارة:	-40 ~ 70 درجة مئوية
الأبعاد (W X D X H):	71 × 94 × 26 مم

الوصف

Media Converter 10/100/1000M Gigabit Ethernet(with External Power Supply) SFP Slot

Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot

Model: LNK-3011WSFP

Overview

The Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot

(model: LNK-3011WSFP) is a high-reliability network conversion device designed to bridge

UTP copper cabling and fiber SFP (Small Form-Factor Pluggable) transceivers. As a Media

Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot, it strictly

complies with IEEE802.3, IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, ensuring

seamless integration into diverse network infrastructures.

This Media Converter10/100/1000M Gigabit Ethernet (with External Power Supply) SFP Slot

supports two critical media network connections: 10Base-T/100Base-TX/1000Base-T (copper)

and 1000Base-SX/LX (fiber). It efficiently inter-converts electrical signals from 10Base-T/100

Base-TX/1000Base-T twisted pairs with optical signals from 1000Base-SX/LX, overcoming the

100m distance limit of copper cables by extending transmission up to 120km via fiber optic cables.

A key advantage of this Media Converter10/100/1000M Gigabit Ethernet (with External Power

Supply) SFP Slot is its dedicated SFP slot, which enables flexible compatibility with various SFP

transceivers, adapting to different fiber types and transmission requirements. Equipped with an

external power supply, it ensures stable operation in industrial or high-demand environments

where reliable power is critical. This combination of versatility and stability makes it an ideal

choice for extending gigabit networks over long distances.

Features

► Supporting inter-conversion between adaptive

► 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

► Use Port 10/100/1000Base-TX (RJ45), 1000Base-SX/LX (SFP slot)

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Supporting the transmission of extra-long VLAN packets

► Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets

Technical Indexes

Parameter	Specifications
Access mode	10/100/1000Mbps Gigabit Ethernet
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Wavelength	850nm/1310nm/1550nm
Transmission distance	multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
	single mode Dual-fiber: 20/40/60/80 Km
	single mode Single fiber: 20/40/60/80 Km
	Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
Port	One optical port: SFP 3.3V
Conversion means	Media conversion
BER	<10-9
MTBF	100,000 hours
LED indicator	POWER (power supply), FX LINK (optical link action), TP LINK1000 (TP cable rate1000M), TP LINK100 (TP cable rate 100M), TP ACT (TP cable packet forwarding action)
Power supply	External Power: AC90~240V input, 5V2A output
Power consumption	5W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	71 x 94 x 26 mm
