تفاصيل المنتج
Place of Origin: China
اسم العلامة التجارية: E-link
إصدار الشهادات: CE, FCC, RoHS
Model Number: LNK-SP15WG
الوثيقة: E-link 12V PoE Splitter Dat....2.pdf
شروط الدفع والشحن
Minimum Order Quantity: 1pcs
الأسعار: قابل للتفاوض
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Product Size: |
93mm(L) * 34W *26H |
Weight: |
0.05kg |
Operating temperature: |
-20°～50°C |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Standard: |
IEEE802.3 af 15.4W |
Product Size: |
93mm(L) * 34W *26H |
Weight: |
0.05kg |
Operating temperature: |
-20°～50°C |
CasingCasingCasingCasingCasing: |
Aluminum Case |
Standard: |
IEEE802.3 af 15.4W |

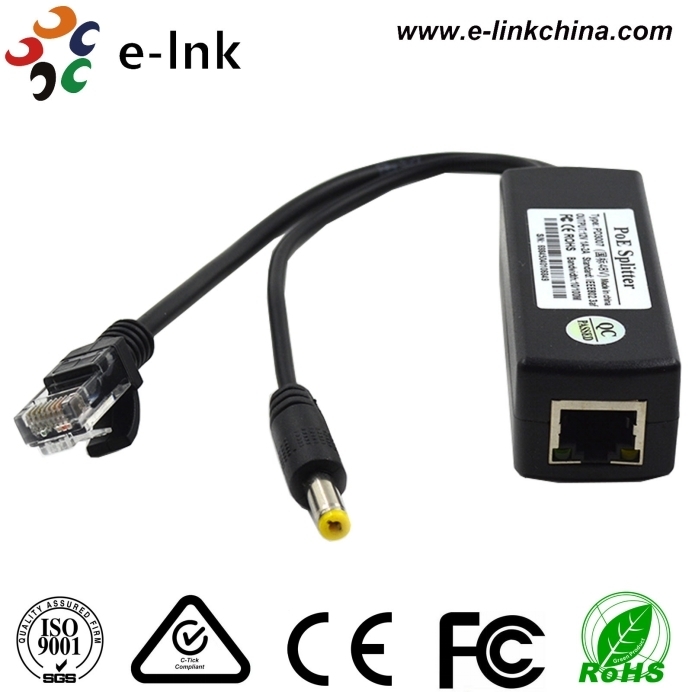

LNK-SP100 Series 12V PoE Splitter
Product Advantages
• Support international standard IEEE802.3 af(15.4W);
• Support 10/100Mdata transmission
• PD support 37V-57V voltage transmission, Automatically detects power supply from PSE power supply module
• 12V power output, easy to access Poe network for non-poe terminal
• Support the isolation circuit protection, can effectively protect electrical equipment.
• Support the short circuit, over voltage protection
Overview
PoE splitter,it is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission.Proper matching use with poe switch or PSE injector which meet standard IEEE802.3af,Provides power and data at the same time for the terminal device does not support PoE.
Technical Indexes
|
Model |
LNK-SP100 |
|
|
|
|
|
|
|
|
|
|
|
|
Transfer Rate |
10/100M |
|
|
|
|
|
|
|
||||
|
Power |
Input 48V DC /0.35A, Output 12V/1.25A |
||||
|
|
|
|
|
||
|
Standard |
IEEE802.3 af |
15.4W |
|
||
|
|
|
|
|
|
|
|
TRNF |
1/2 + |
3/6 |
- |
4/5 + |
7/8 - |
|
|
|
||||
|
Interface Type |
1 Input RJ45 port, 1 output RJ45 port, 1 DC output |
||||
|
|
|
||||
|
|
|
||||
|
Standard |
IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af |
||||
|
|
|
|
|
||
|
LED |
Yellow PoE lamp |
|
|
||
|
|
|
|
|||
|
|
Work within -20~50 |
Storage within -30~60 |
|||
|
Environment |
Work within 10%~90% Non-condensing Storage within 5%~95% |
||||
|
|
Non-condensing |
|
|
||
|
|
|
|
|
||
|
Dimension |
93L * 34W *26H |
|
|
||
|
|
|
|
|
|
|
|
Weight |
0.05kg |
|
|
|
|
|
|
|
|
|
|
|
Ordering Information
Model Description
|
LNK-SP100 |
10/100M Input IEE802.3af/at Output DC 12V/1.25A |
