تفاصيل المنتج
Place of Origin: China
اسم العلامة التجارية: E-link
إصدار الشهادات: ISO9001, CE, FCC, RoHS
Model Number: LNK-SPD100
الوثيقة: E-link LNK-LNK-SPD100 Surge....0.pdf
شروط الدفع والشحن
Minimum Order Quantity: 1pcs
الأسعار: قابل للتفاوض
Packaging Details: Industrial PoE Switch Standard Carton Packaging
Delivery Time: 7-10 working days
Payment Terms: L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability: 100000PCS/Month
Working Temperature: |
-25~+65 ºC |
Working Humidity: |
<95% (25~30 ºC) |
Test Standard: |
IEC61643-21: 2000 |
Insert Loss Ae: |
0.2dB |
Limit Voltage Up: |
15V |
Maximum Discharging Current Imax (8/20us): |
10KA |
Working Temperature: |
-25~+65 ºC |
Working Humidity: |
<95% (25~30 ºC) |
Test Standard: |
IEC61643-21: 2000 |
Insert Loss Ae: |
0.2dB |
Limit Voltage Up: |
15V |
Maximum Discharging Current Imax (8/20us): |
10KA |

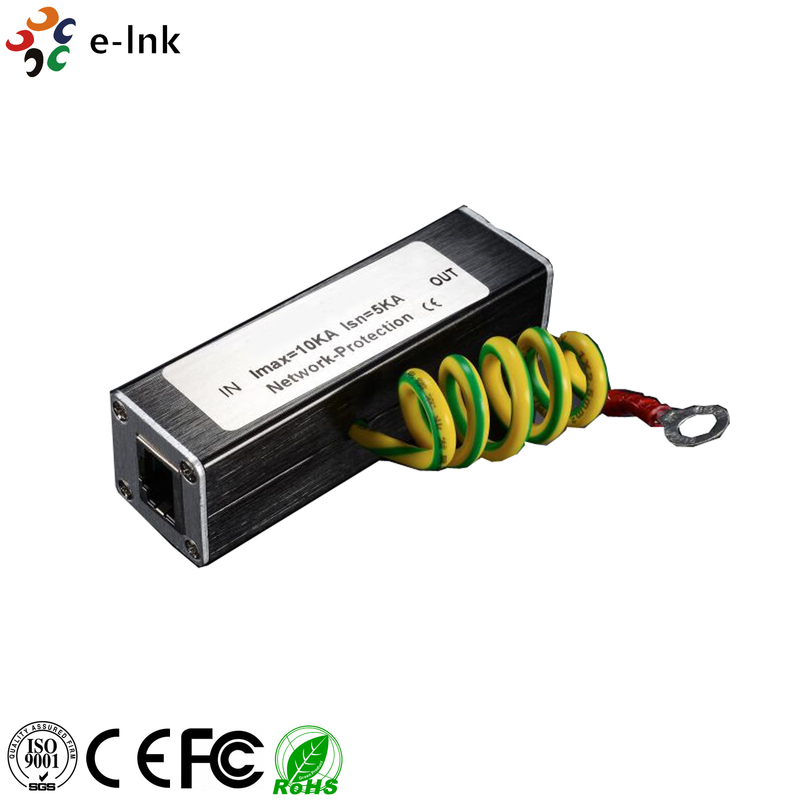

Surge Protector for 10/100M Ethernet
Product Advantages
► Adopt multilevel protection circuit, low-level persistent voltage
► Adopt the famous German brand core components, installation and maintenance is easy
► It has huge flow capacity, sensitive reaction
► Excellent performance, and low-loss insert
Overview
The Surge Protector for 10/100M Ethernet is applied to protect sensitive high speed network communication circuits; It is widely used for protecting data transmission system in computer communication, network switchboard and network router from serious damage, which made by thunder and lightning induced tension, electrical network voltage undulation disturbance, static discharge, and impact surge voltage caused by major damage.
Technical Indexes
|
Continuous Operating Voltage Un |
5V |
|
Maximum Working Voltage Uc |
10V |
|
Nominal Discharging Current In (8/20us) |
5KA |
|
Maximum Discharging Current Imax (8/20us) |
10KA |
|
Limit Voltage Up |
15V |
|
Network Signal Transmission Rate Vs |
10/100Mbps |
|
Insert Loss Ae |
0.2dB |
|
Response Time Ta |
1nS |
|
Network Interface Type |
RJ45 |
|
|
Temperature -25~+65 ºC Humidity<95% (25~30 ºC) |
|
Test Standard |
IEC61643-21: 2000 |
|
Model |
Description |
|
LNK-SPD100 |
Surge Protector for 10/100M Ethernet |
