تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: E-Link
إصدار الشهادات: RoHS,CE
رقم الموديل: سلسلة LNK-2000
شروط الدفع والشحن
الحد الأدنى لكمية: 1 أجهزة كمبيوتر
الأسعار: قابل للتفاوض
تفاصيل التغليف: عبوة الكرتون
وقت التسليم: 3-12 أيام العمل
شروط الدفع: T/T ، Western Union ، Moneygram ، PayPal
القدرة على العرض: 1000 جهاز كمبيوتر شخصي/شهر
قناة الإدخال: |
1-8 |
فقدان الانعكاس: |
> 15 ديسيبل |
حالة توازن: |
0-250m |
الموصل: |
75Ω BNC |
قنوات الإخراج: |
1-8 |
مستوى الإشارة: |
800MV الاسمية |
قناة الإدخال: |
1-8 |
فقدان الانعكاس: |
> 15 ديسيبل |
حالة توازن: |
0-250m |
الموصل: |
75Ω BNC |
قنوات الإخراج: |
1-8 |
مستوى الإشارة: |
800MV الاسمية |

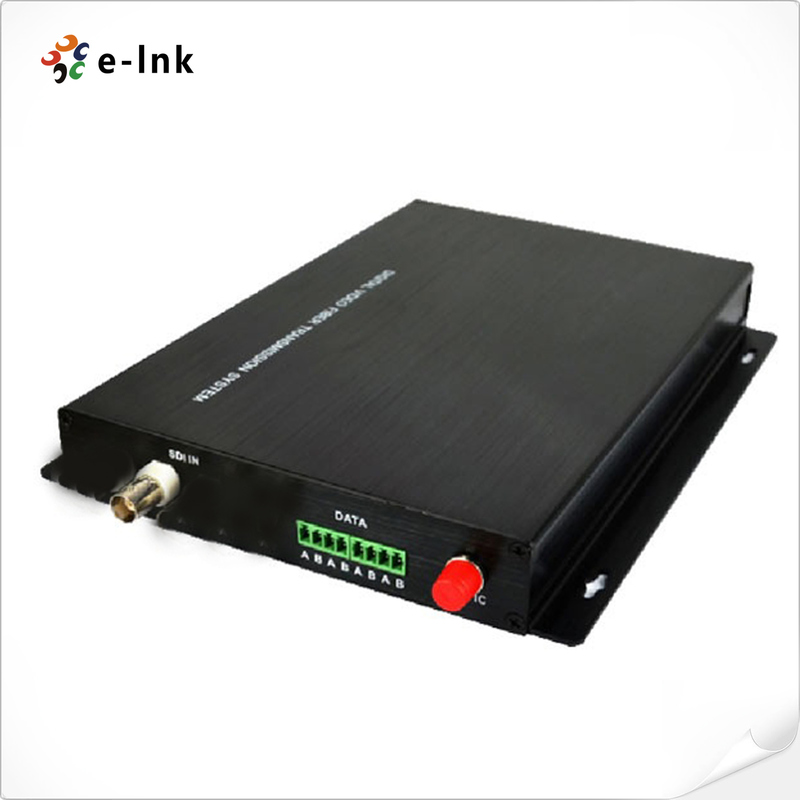

Product: SD-SDI/ASI Unidirectional Fiber Optic Transmitter/Receiver
Advantages
· 1-8 ch unidirectional SD-SDI/ASI,TS stream with embedded audio over one fiber
· SMPTE 259, SMPTE 297, SMPTE310, SMPTE305
DVB-ASI (270Mb/s) standard
· Output wavelength 1310nm,1550nm and 16 types of CWDM (ITU-T G.694.2 compliant)
· 150m automatic cable equalization, all the 1.485 Gb/s rate below(Belden 1694A)
· Optional network management system
· LED status indicators monitor the critical parameters
· Support hot swap
· Support stand-alone, 1U rack mount and 4U rack mount
Overview
The SD-SDI/ASI provides customer with the most cost-effective solution for transmission of 1-8 channel unidirectional SDI/ASI digital video signal, with 1+1 remote input redundancy and 1 local input redundancy optional. It is an easy installation and adjustment free device while providing high quality, real-time video. It is widely used in the field of CCTV, video surveillance, and etc.
Technical Indexes
|
Serial TV BNC Input |
|
|
TV signal standard |
SMPTE 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other Telecom/Datacom rate |
|
Input channel |
1-8 |
|
Reflection loss |
>15DB |
|
Equilibrium |
0-250m |
|
Connector |
75Ω BNC |
|
Serial TV BNC Output (EO/OE) |
|
|
Output channels |
1-8 |
|
Signal level |
800mV nominal |
|
Rise/fall time |
200Ps nominal |
|
Overshoot |
<10% amplitude |
|
Reflection loss |
> 15dB |
|
Jitter |
< 0.3UI |
|
Connector |
75Ω BNC |
|
Optic Output |
|
|
Channel |
1 |
|
Type |
Single-mode/fiber (multimode optional) |
|
Wavelength |
CWDM wavelenth |
|
Reflection loss |
> 15dB |
|
Jitter |
< 0.3UI |
|
Connector |
FC/PC(ST/PC optional) |
|
Power and environmental indicator |
|
|
Operating temperature |
-45℃～＋50℃ |
|
Pressure |
1A@12VDC |
|
Power |
12W |
|
EMI/RFI |
FCC Part 15 Class A, EU EMC standard |
|
>100000 hours |
|
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
Order Information
|
Model |
Description |
|
LNK-2010-T |
1-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2010-R |
1-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2020-T |
2-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2020-R |
2-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2040-T |
4-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2040-R |
4-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2080-T |
8-Ch SD-SDI/ASI with embedded audio input, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
|
LNK-2080-R |
8-Ch SD-SDI/ASI with embedded audio output, single mode(multimode optional), single fiber, FC/PC fiber connector, BNC video interface, 0-120km, stand-alone or 1U rack mount |
