تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: E-link
إصدار الشهادات: ISO9001, CE, ROHS, FCC
رقم الموديل: LNK-INS901-36V
شروط الدفع والشحن
الحد الأدنى لكمية: 1pcs
الأسعار: US$44-US$47
تفاصيل التغليف: تغليف كرتوني قياسي لفاصل الطاقة PoE
وقت التسليم: 1-3 أيام العمل
شروط الدفع: T/T ، Western Union ، Moneygram ، PayPal
القدرة على العرض: 1000/شهر
معدل المرشح الأمامي:: |
1،488،000pps (1000 ميغابت في الثانية) |
المسافة القصوى:: |
CAT5 UTP حتى 100 متر |
معيار PoE:: |
IEEE 802.3AF/AT/BT Over Ethernet |
خرج الطاقة:: |
70W 36VDC (كتلة طرفية) |
PWR:: |
36VDC السلطة خارج |
الأبعاد (WXDXH):: |
95 × 70 × 30 مم |
معدل المرشح الأمامي:: |
1،488،000pps (1000 ميغابت في الثانية) |
المسافة القصوى:: |
CAT5 UTP حتى 100 متر |
معيار PoE:: |
IEEE 802.3AF/AT/BT Over Ethernet |
خرج الطاقة:: |
70W 36VDC (كتلة طرفية) |
PWR:: |
36VDC السلطة خارج |
الأبعاد (WXDXH):: |
95 × 70 × 30 مم |

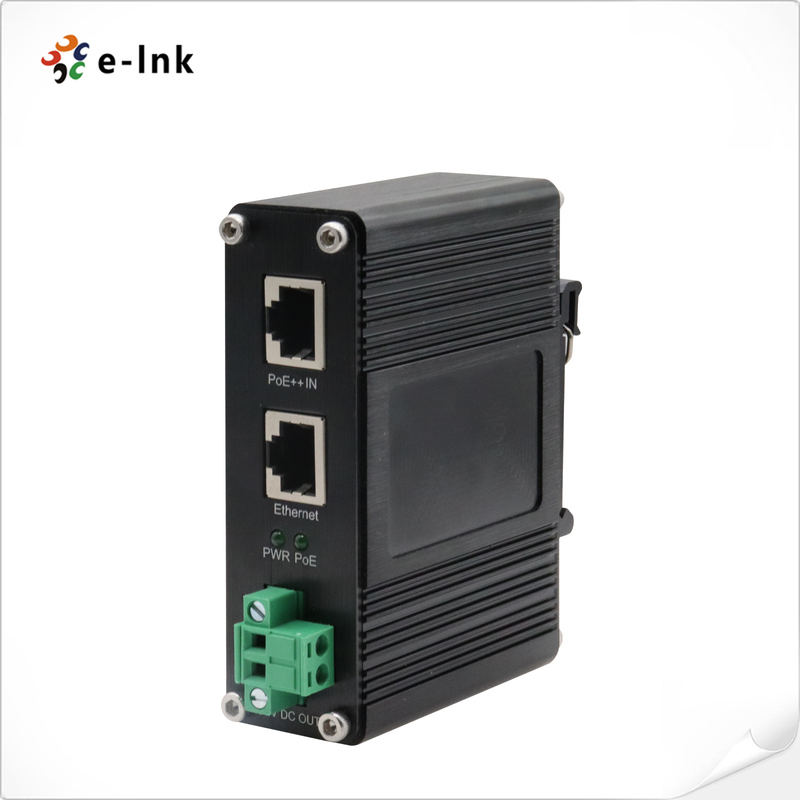

Model : LNK-INS901-36V
Product Description & Overview
The LNK-INS901-36V series represents a premium industrial-grade Power over Ethernet solution
specifically engineered to deliver both high-speed data transmission and stable 36VDC power
conversion for specialized industrial equipment. This professional-grade PoE++ splitter maintains
complete compliance with IEEE 802.3bt standards while supporting full Gigabit Ethernet performance
across standard 100-meter network segments. The advanced power conversion system efficiently
transforms high-power PoE++ input into precisely regulated 36VDC output through industrial-grade
circuitry, eliminating the need for separate electrical infrastructure while substantially reducing installation
costs for high-voltage industrial applications.
Featuring rugged industrial construction with enhanced thermal management and comprehensive
electromagnetic shielding, this high-performance splitter serves as an advanced powered device (PD)
compatible with PoE++ switches and high-power injectors including the LNK-INJ-48-95W series. The
innovative plug-and-play architecture requires absolutely zero configuration, while the industrial-grade
screw terminal block ensures secure power connections for various 36V industrial devices. Ideal for
industrial control systems, motor drive applications, and specialized automation equipment, this versatile
solution offers exceptional deployment flexibility in demanding environments where both network reliability
and high-voltage power requirements are critical.
The integrated multi-level protection system provides complete safeguarding of connected equipment
against power anomalies, voltage variations, and circuit faults while maintaining peak efficiency during
continuous operation. This high-voltage splitting solution enables seamless integration of 36V industrial
equipment into modern PoE++ networks, delivering exceptional value for system integrators managing
sophisticated network infrastructures across manufacturing plants, industrial automation facilities, and
specialized installations requiring reliable high-voltage power delivery and high-speed data transmission
for industrial controllers, motor systems, and specialized equipment in challenging operational environments.
Key Features Bullets
High-Voltage PoE++ Power Conversion
Delivers stable 36VDC output from IEEE 802.3af/at/bt compliant inputs
Professional Signal Separation Technology
Efficiently isolates data and power through advanced splitting circuitry
Industrial Environmental Hardening
IP40 metal enclosure with -40°C to 80°C operational range
Comprehensive Electrical Protection
Integrated short-circuit and overload safety mechanisms
Gigabit Network Performance
Maintains 10/100/1000Base-T speeds over 100-meter distances
Dedicated Interface Configuration
Single PoE input + data output + 36VDC terminal block design
Versatile Mounting System
DIN-rail and wall-mount compatible installation
Real-Time Status Monitoring
Multi-indicator LED system for power and data diagnostics
Rugged Industrial Construction
Fanless metal housing for harsh environment durability
Technical Specifications & Indexes
|
Ethernet |
|
|
Standards: |
IEEE 802.3 10Base-T Ethernet |
|
IEEE 802.3u 100Base-TX Fast Ethernet |
|
|
IEEE 802.3ab 1000Base-T Gigabit Ethernet |
|
|
IEEE 802.3af Power over Ethernet |
|
|
IEEE 802.3at Power over Ethernet Plus |
|
|
IEEE 802.3bt 4-pair Power over Ethernet |
|
|
Processing Type: |
Forward |
|
Half-duplex, Full-duplex |
|
|
Forward Filter Rate: |
1,488,000pps (1000Mbps) |
|
Cabling: |
1000Base-T: Cat5 or above |
|
Maximum Distance: |
Cat5 UTP up to 100m |
|
Interface: |
“PoE (Power + Data)” Input Port: 1 x RJ-45 10/100/1000Base-T |
|
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T |
|
|
DC Out Plug Connector: 1 removable 2-Pin terminal block |
|
|
Power over Ethernet |
|
|
PoE Standard: |
IEEE 802.3af/at/bt Power over Ethernet |
|
Number of devices that can be powered: |
1 (36VDC) (Vary on device’s power requirement; cannot be over 36 watts.) |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 80°C (-40°F to 176°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF: |
>200,000hrs |
|
Electrical and Mechanical |
|
|
Power Output: |
70W 36VDC (Terminal Block) |
|
Power Consumption: |
75W Max. |
|
LED Indicators: |
|
|
PWR: |
36VDC Power OUT |
|
POE: |
PoE Power IN |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
Aluminum Case |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Regulatory Approvals |
|
|
ISO9001 |
|
|
FCC part 15, Class A |
|
|
EN55022:2006+A1: 2007 Class A |
|
|
Surge Protection: |
|
|
RJ45: 1KV |
|
|
Power: 500W |
|
|
ESD: 4KV/8KV |
|
Ordering information
|
Model |
Description |
|
LNK-INS901-36V |
Industrial IEEE802.3bt Gigabit PoE Splitter Output Voltage 36VDC, maximum output of 70W at 36VDC, Support DIN-Rail mounting and Wall mounting installation, -40 to 80°C operating temperature |
|
Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Application Scenarios
Powering industrial motor controllers and drive systems
Supporting high-voltage industrial automation equipment
Enabling connectivity for industrial LED lighting systems
Providing PoE++ for specialized medical equipment
Supporting network devices in extreme industrial environments
