تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: E-link
إصدار الشهادات: ISO9001, CE, ROHS, FCC
رقم الموديل: LNK-109KVM
شروط الدفع والشحن
الحد الأدنى لكمية: 1pair
الأسعار: US$359-US$399
تفاصيل التغليف: HDMI Fiber Extender Tandard Carton Packaging
وقت التسليم: 1-3 أيام العمل
شروط الدفع: T/T ، Western Union ، Moneygram ، PayPal
القدرة على العرض: 1000/شهر
ساعة بكسل الحد الأقصى: |
600 ميجا هرتز |
سرعة البيانات: |
18 جيجابت في الثانية (6 جيجابت في الثانية/القناة) |
مقاومة: |
100Ω |
واجهة النطاق الترددي: |
18 جيجابت في الثانية |
البعد (LXWXH): |
93 × 70 × 28 (مم) |
الضمان: |
ضمان مجاني لمدة عام |
ساعة بكسل الحد الأقصى: |
600 ميجا هرتز |
سرعة البيانات: |
18 جيجابت في الثانية (6 جيجابت في الثانية/القناة) |
مقاومة: |
100Ω |
واجهة النطاق الترددي: |
18 جيجابت في الثانية |
البعد (LXWXH): |
93 × 70 × 28 (مم) |
الضمان: |
ضمان مجاني لمدة عام |

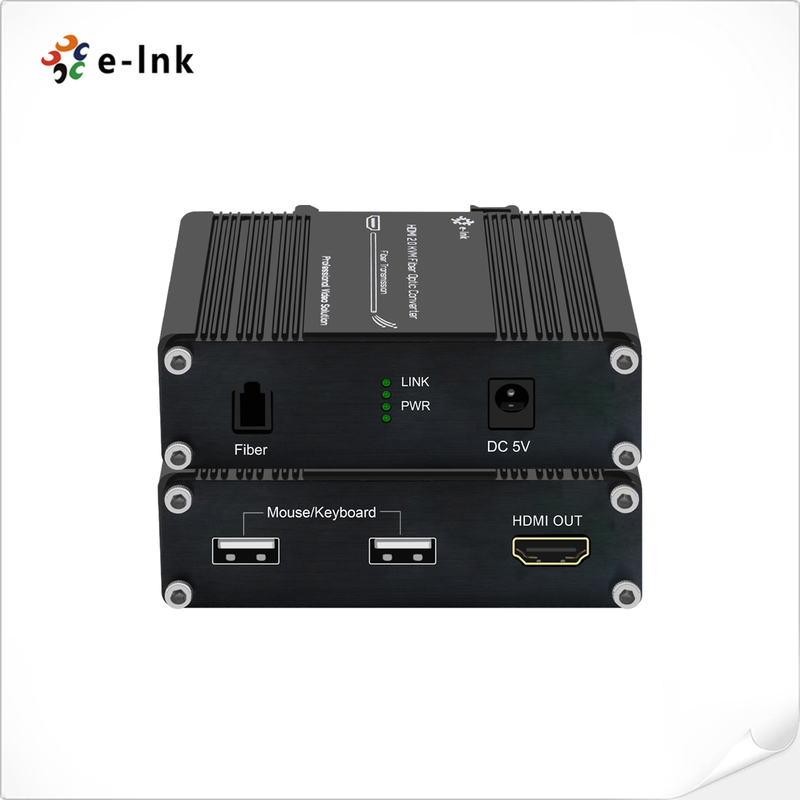

Model : LNK-109KVM
Product Description & Overview
The LNK-109KVM represents a cutting-edge fiber optic extension system engineered to deliver uncompressed
4K/60Hz video and USB peripheral control over extended distances. This advanced extender utilizes wavelength-
division multiplexing technology to transmit pristine HDMI 2.0 signals alongside USB HID commands through LC
OM4 multimode fiber infrastructure, supporting transmission distances up to 300 meters while maintaining full 4:4:4
chroma sampling quality. The sophisticated transmitter unit incorporates intelligent signal distribution technology,
enabling simultaneous local output and remote fiber transmission through advanced photoelectric conversion engines.
Featuring a compact form factor and industrial-grade construction, this professional KVM extender ensures zero
latency transmission for mission-critical applications in broadcasting, control rooms, and digital signage environments.
The integrated signal processing technology guarantees perfect synchronization between video content and peripheral
commands, making it ideal for interactive displays, medical imaging systems, and command center applications where
both visual quality and responsive control are essential. The receiver unit precisely reconstructs original HDMI signals
with complete fidelity, preserving color depth and image integrity throughout the maximum transmission distance.
Designed for modern AV installations, this versatile solution supports comprehensive USB HID compatibility including
keyboards, mice, and touchscreen devices, while the enhanced fiber optic architecture provides complete immunity to
electromagnetic interference. With plug-and-play operation and automatic signal optimization, this mini extender
establishes new standards for compact, high-performance KVM extension in corporate presentation systems,
educational facilities, and industrial monitoring applications requiring reliable long-distance signal transmission
without compromising on 4K visual quality or peripheral responsiveness.
Key Features Bullets
Extended 4K Signal Transmission
Delivers uncompressed HDMI 2.0 video up to 300m over OM4 multimode fiber
High-Performance Video Quality
Supports 4K@60Hz resolution with 4:4:4 chroma sampling
Integrated Peripheral Control
USB keyboard and mouse transmission with dual output ports
Local Monitoring Capability
Transmitter with local loop output for simultaneous display
Professional Connector Configuration
HDMI input/output, USB type-B, LC fiber optic, and DC power interfaces
Zero-Configuration Operation
Plug-and-play installation requires no technical setup
Technical Specifications & Indexes
|
Parameter |
Description |
|
|
Video |
Standards |
HDMI 2.0 and HDCP 2.2 |
|
Maximum pixel clock |
600MHz |
|
|
Data speed |
18Gbps(6 Gbps/CH) |
|
|
Resolution range |
4K@60Hz/4K@30Hz/1080p/720p |
|
|
Connector |
Female HDMI type A |
|
|
Impedance |
100Ω |
|
|
K/M |
Interface |
PC: MINI-USB Keyboard And Mouse: USB-A |
|
Optical fiber |
Interface |
LC connector |
|
Fiber type |
OM4 Multimode |
|
|
Wavelength |
850nm |
|
|
Interface bandwidth |
18Gbps |
|
|
Transmission distance |
OM4 Multimode fiber: 300M |
|
|
Other |
Power supply |
The power adapter: DC 5V |
|
Power dissipation |
TX:＜1.5W; RX:＜1W |
|
|
Temperature |
Operating: 0℃ ~ +55℃ |
|
|
Humidity |
Operating: 5% ~ 90% |
|
|
Dimension (LxWxH) |
93 x 70 x 28(mm) |
|
|
Gross weight |
0.25KG |
|
|
The warranty |
1-year free warranty |
|
Ordering Information
|
Model |
Description |
|
LNK-109KVM |
Uncompressed Mini 4K HDMI 2.0 KVM USB over Fiber Optic Extender, OM3/4 Multimode Fiber, LC, 300 meters |
Application Scenarios
Extending 4K medical imaging displays with peripheral control
Supporting broadcast production systems with KVM functionality
Enabling industrial control rooms with long-distance connectivity
Providing digital signage control with high-quality video transmission
Facilitating conference room presentations with extended connectivity
